Product Description

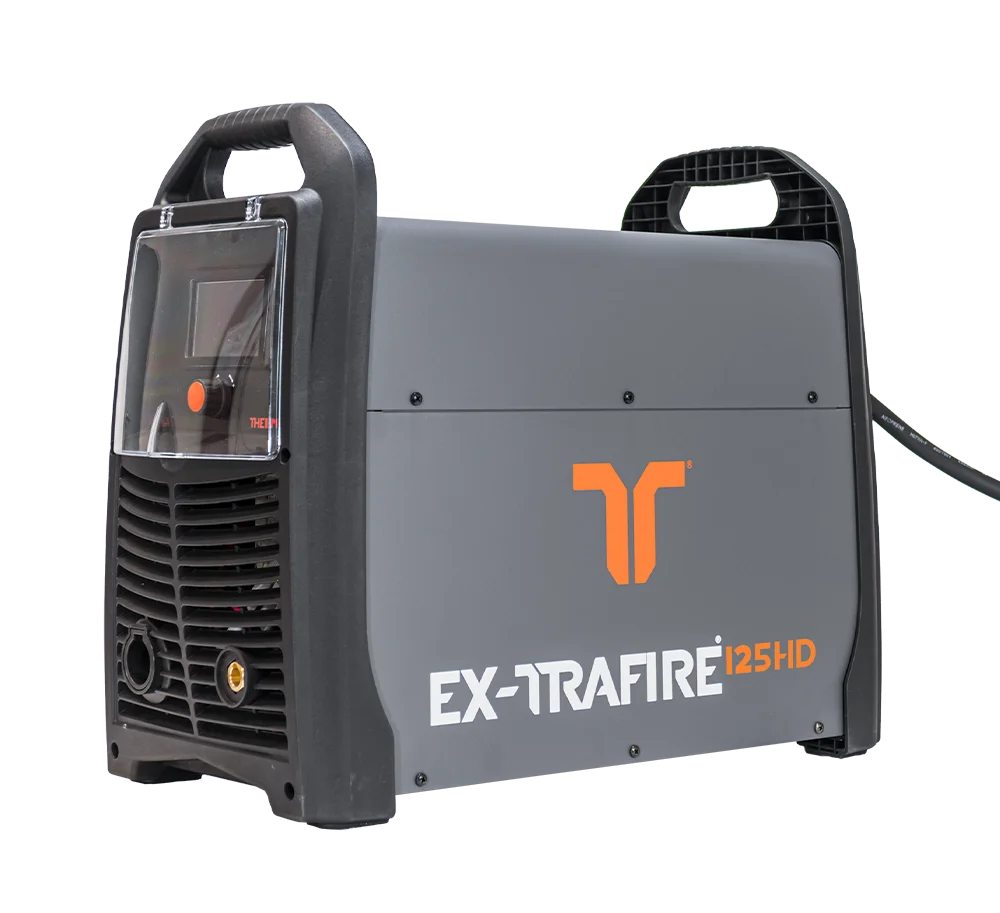

The EX-TRAFIRE® 125HD is a heavy-duty industrial plasma cutting system designed for maximum performance in demanding cutting environments. Delivering up to 125A output current, the system provides exceptional cutting capacity while maintaining precision, reliability and consistent cut quality.
Designed for both mechanised and handheld applications, the 125HD offers advanced cutting capabilities including standard cutting, grid cutting, gouging and marking. With integrated CNC connectivity and optional serial communication, it is ideal for professional CNC plasma cutting systems and high-production environments.
- Output current up to 125A
- Heavy-duty industrial plasma cutting system
- Designed for high-capacity cutting applications
- Handheld and mechanised cutting capability
- Standard cutting, grid cutting, gouging and marking modes
- Built-in CNC interface
- Optional serial RS/CAN bus connectivity
- Compatible with high-performance FHT-EX®125 torch systems
- Suitable for CNC plasma cutting applications
- Reliable performance for demanding industrial environments
Plasma Pack Specs
| Output current | 30–125A |
|---|---|
| Modes | Standard cutting / grid cutting / gouging / marking |
| Duty cycle | 100% @ 125A |
| Rated output voltage | 175 VDC |
| Severance cutting capacity | 70mm mild steel |
| Piercing capacity | 35mm mild steel |
| Recommended cutting capacity | 40mm mild steel |
| Plasma gas | Compressed air / nitrogen / argon for marking |
| Air flow | 220 lpm @ 5.5 bar |
| CNC interface | Built-in |
| Serial interface | Optional RS/CAN bus |
| Voltage divider ratio | 50:1 |
| Input voltage | 3 × 400 VAC ±15% |
| Frequency | 50/60 Hz |
| Dimensions | 680 × 315 × 510mm |
| Weight | 35kg |
| Certification | CE |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Hand torch | FHT-EX®125TTH |
| Machine torch | FHT-EX®125TTM |
Warranty
All new THERMACUT EX-TRAFIRE plasma cutting machines sold through THERMACUT UK Ltd include a 3 year warranty against failure due to defective materials or production.
Servicing
- Maintenance contracts are available at 3, 6 or 12 month intervals.
- We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
- We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
- We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
