Product Description

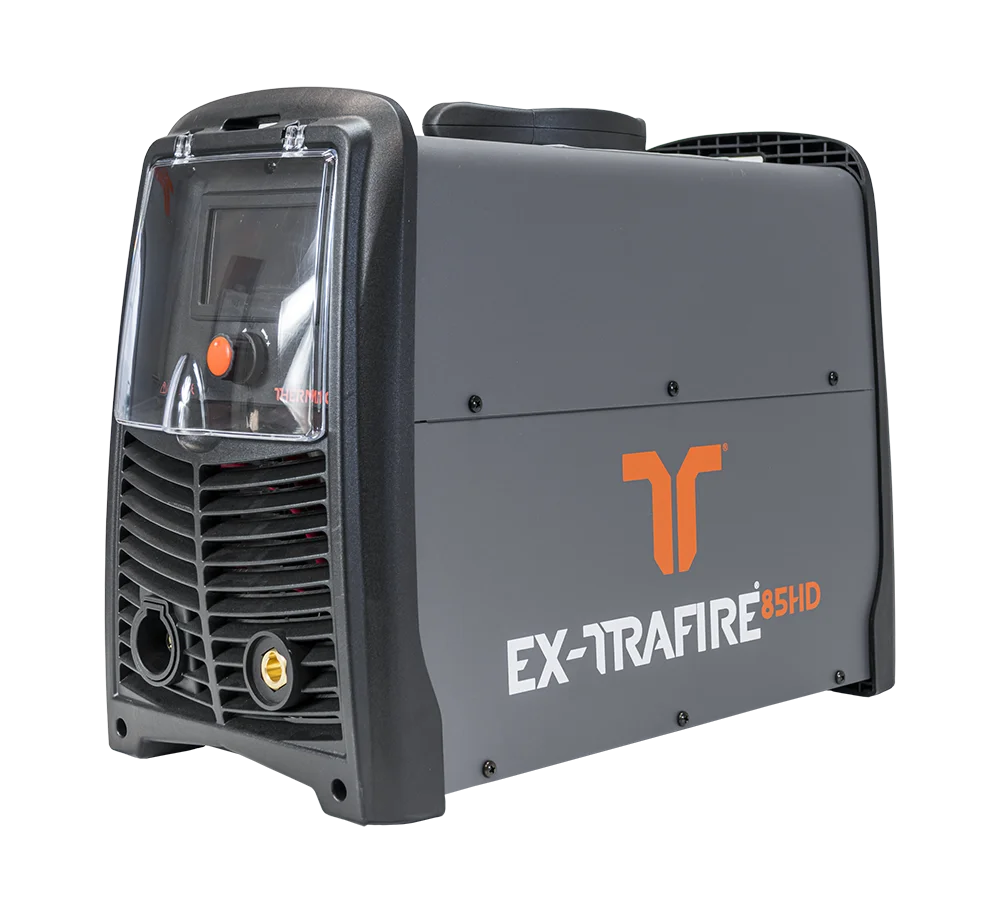

The EX-TRAFIRE® 85HD is a high-performance plasma cutting system designed for professional cutting environments. Offering up to 85A output current, the system delivers increased cutting capacity while maintaining excellent precision, reliability and ease of operation.
Designed for both handheld and mechanised cutting applications, the 85HD supports standard cutting, grid cutting, gouging and marking. With integrated CNC connectivity, it is ideal for automated plasma cutting systems and demanding industrial applications.
- Output current up to 85A
- Professional handheld and mechanised plasma cutting system
- High cutting capacity for thicker materials
- Standard cutting, grid cutting, gouging and marking modes
- Built-in CNC interface
- Optional serial RS/CAN bus connectivity
- Compatible with FHT-EX®65/105 torch systems
- Suitable for mild steel, stainless steel and aluminium cutting
- Designed for heavy-duty industrial use
Plasma Pack Specs
| Output current | 20–85A |
|---|---|
| Modes | Standard cutting / grid cutting / gouging / marking |
| Duty cycle | 60% @ 85A / 100% @ 65A |
| Rated output voltage | 160 VDC |
| Severance cutting capacity | 50mm mild steel |
| Piercing capacity | 25mm mild steel |
| Recommended cutting capacity | 25mm mild steel |
| Plasma gas | Compressed air / nitrogen / argon for marking |
| Air flow | 190 lpm @ 5.5 bar |
| CNC interface | Built-in |
| Serial interface | Optional RS/CAN bus |
| Voltage divider ratio | 50:1 |
| Input voltage | 3 × 400 VAC ±15% |
| Frequency | 50/60 Hz |
| Dimensions | 680 × 315 × 510mm |
| Weight | 32kg |
| Certification | CE |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Hand torch | FHT-EX®65/105TTH |
| Machine torch | FHT-EX®65/105TTM |
Warranty
All new THERMACUT EX-TRAFIRE plasma cutting machines sold through THERMACUT UK Ltd include a 3 year warranty against failure due to defective materials or production.
Servicing
- Maintenance contracts are available at 3, 6 or 12 month intervals.
- We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
- We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
- We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
