Easy to Use, Versatile & Reliable CNC Software
As a true multitasking CNC system, it works with all conventional and high-precision plasma systems and gas and waterjet in any combination.
With over 1,500 installations worldwide, producing anything from artwork to aircraft carriers, the TechServ CNC system is proven and reliable. It is fitted to all new TechServ CNC machines as standard and can also be supplied as a retrofit kit.
TechServ’s CNC software is simple to set up and easy to use, only requiring 3 short steps to operate.
Make a shape using the built-in flexi shapes or download one from your network or USB
Select the material you want to cut
Position the torch where you want to begin and press ‘start’
CNC Software Features
- Windows 11-based PC Controller: Operates on a modern, user-friendly interface for seamless control.
- Interactive Touch Screen: Provides an intuitive touch-based control experience.
- 64-bit Dedicated Motion Controller: Ensures high-speed and precise motion control.
- Laser Torch Alignment: For precise positioning of the cutting torch.
- Easy Origin Selection: Simplifies the process of setting the starting point for cuts.
- Line Following Scanner (Optional): Allows the scanning of hand-drawn or irregular shapes to create CNC files.
- Ethernet Servo or Hybrid Stepper Drives: Offers smooth and accurate movement of the cutting head.
- Speed and Cut Pressure Override: Offers manual control over speed and pressure for precise adjustments.
- Automatic Speed Control: Dynamically adjusts speed for optimal cutting performance.
- Manual Cut Screen: Allows for manual adjustments and controls during the cutting process.
- Flexi Shapes Built-In: Provides a range of predefined shapes for quick setup.
- Row and Column Nesting: Optimises material usage by arranging parts efficiently.
- Extensive Hole and Shape Nesting: Offers advanced nesting options for complex shapes and patterns.
- Data Logging in 1-Minute Intervals: Records all operational data for review and analysis.
- Diagnostic Screen: Provides detailed diagnostics for troubleshooting and maintenance.
- Machine Configuration: The password-protected configuration screen gives access to the machine's setup parameters. A backup is automatically created whenever this information is modified.
- File imports: Supports a wide range of file formats, including industry-standard options like Word Address, Essi, DXF, and StruCad Import, for seamless integration.
- Jump To Part: Touching a part will cause the machine to move to that point and commence cutting.
- Fully Automatic Height Sense Outputs: Adjusts torch height automatically based on material thickness.
- Automatic Gas Control Outputs: Sets gas pressures automatically for flame cutting.
- Full Graphical Display with Zoom: Provides a clear visual representation of the cutting path and progress.
- Estimated Time to Cut: Displays an estimate of the time required to complete a job.
- Lost Cut Recovery: Allows jobs to be paused and resumed without losing progress.
- Forward and Reverse Along Cut Path: Steel warms up when cut and can flex when the manufacturing stresses are removed. This can cause the plasma or gas cutting stream to be extinguished. Pressing the backup button causes the machine to reverse along the cutting path so that the cut can be re-established, reducing scrap and maintaining cut quality.
TechServ Support and Training
As we design and build our systems in-house, we can offer an instant response to any issues. With full remote access to your CNC’s PC we can also offer live support and training services too. With a built-in feature that allows you to share your CNC machine’s setup data with the press of a button, it can be emailed to our UK-based technical team, allowing us to analyse and diagnose any issues remotely.
Advanced Functionalities

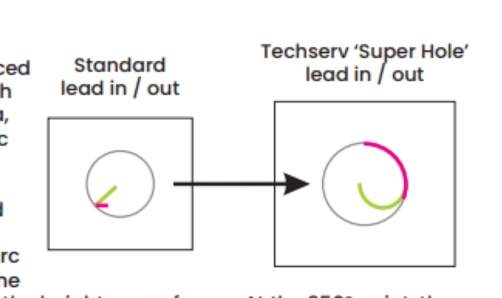

TechServ’s 'Super Hole' automatically applies advanced cutting algorithms to give high-quality holes with any plasma, on any material with most CNC files, DXF or flexi shape.
The standard hole lead in and lead out is removed and replaced with a 180° arc lead in and an arc lead out. The cutting speed is reduced and the height sense is frozen. At the 350° point, the plasma is turned off and the motion continues to blend the cut to a smooth finish with virtually no start-stop marking and minimum taper.
Effortless configuration. Simply input the material thickness and our system automatically adjusts the cutting speed and height sense settings for optimal performance. No need to consult tables or manually enter complex numbers.
Flame cutting made easy. When flame cutting, the system automatically sets the correct gas pressures. Just attach the nozzle, ignite the gas, trim the flames, and start cutting.
TechServ's Fast Pierce accelerates part production by optimising the piercing process. Our system intelligently determines the plate thickness and adjusts the cutting speed accordingly, ensuring precise and efficient piercing.
To minimise downtime between cuts, we've implemented a rapid lift-traverse-drop-fire cycle for short distances. This streamlined process reduces wasted time and significantly speeds up part production.
Need a custom shape? Our system offers a wide range of pre-designed flexible shapes for common construction elements, like rings, flanges and blanks. Plus, we've included specialised shapes for industries like construction, such as finger plates and beam splitting.
Create your own. If you can't find the exact shape you need, our system lets you design and save custom shapes for future use.
No programming required. Once you've selected or created your shape, our system automatically generates the necessary cutting instructions.
How Our CNC Software Enhances Your Workflow
Although it can sound fairly basic – you load a shape, you cut it – there’s more to it: dynamically moving shapes around, manipulating data, choosing shapes out of nests, the automatic set up of gas pressures and plasma controls. We remove that complexity, making the system easy to operate and giving the operator the functions they need, such as reverse along the path, jump to part etc. - functions not always present on generic controllers.
Our priority is ease of operation and a control system that seems simple. People tend to think it looks overly simple; in reality, the complexity is there, but only when you need it.
Automatic nesting fills plates with minimal wastage, allowing multiple parts to be cut from a sheet. Row and column array nesting with adjustable scrap allowance make the best use of the plate.
Cut One part: Complex nests can be imported to the controller and individual parts selected by tapping the relevant part on the screen. This is useful for when a part has been damaged or lost.
High performance drive options
Line Scanner
This add on allows you to draw shapes and scan them using a camera. The scanned shape is then stored as a CNC file or DXF so that it can be edited. Draw around an irregular shape with a back 0.8mm pen to easily convert tricky geometry.
Engraver and Punch Marker
Enhance your CNC capabilities with TechServ’s versatile engraver and punch marker tools. These add-ons allow you to perform precise marking and engraving operations directly on your material, expanding the scope of your CNC Read More
Ready to Simplify Your CNC Processes?
Tired of complex CNC software that’s difficult to use? Our software is designed by engineers who have spent countless hours in the field, working alongside operators like you. With our customers’ help, we’ve built a system that’s intuitive, powerful and tailored to your specific requirements.
Enhance Your Capabilities with Add-Ons
Our CNC machines are built on a robust foundation of off-the-shelf PCs running the latest Windows operating system, coupled with high-performance motion controllers connected via Ethernet for reliable communication.
Hybrid Stepper Systems
This add on allows you to draw shapes and scan them using a camera. The scanned shape is then stored as a CNC file or DXF so that it can be edited. Draw around an irregular shape with a back 0.8mm pen to easily convert tricky geometry.
Servo Systems
For demanding applications requiring precision and speed, our HQC and larger systems incorporate fully digital brushless AC servo drives paired with precision planetary gearboxes. This powerful combination delivers the accuracy you need with the speed you demand.
