Product Description

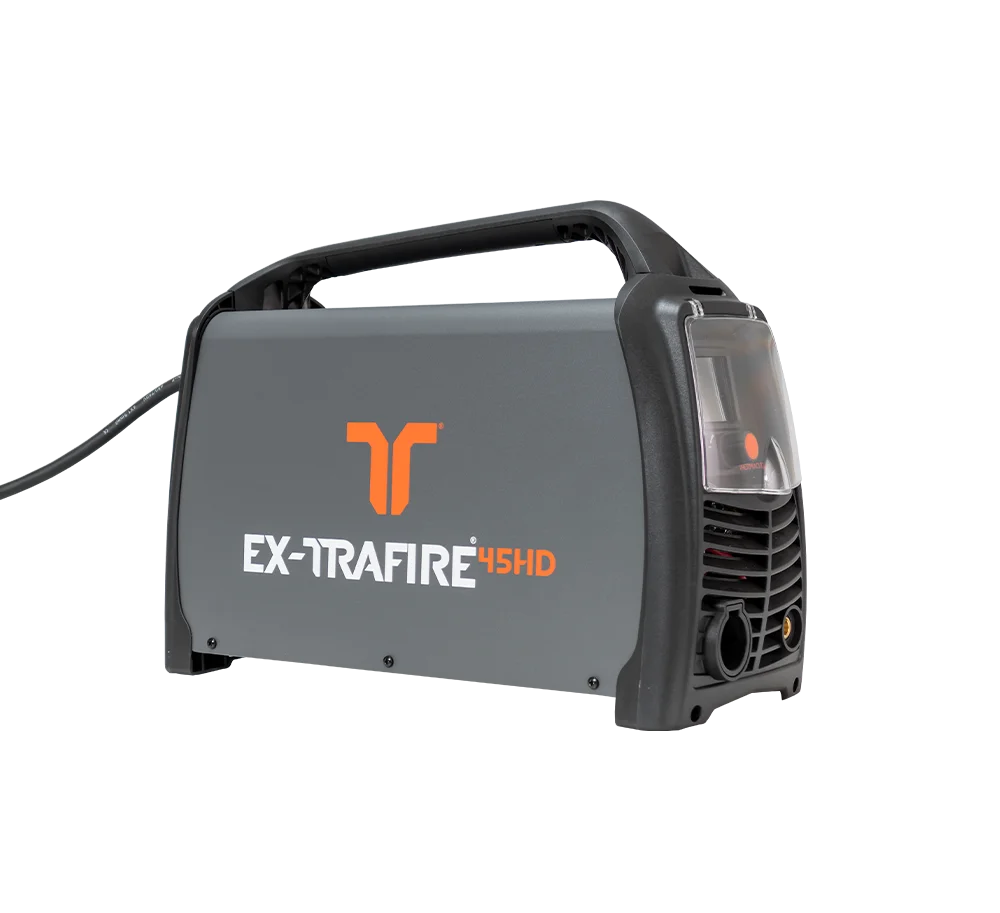

The EX-TRAFIRE® 45HD is a compact plasma cutting system designed for both handheld and mechanised cutting applications. It supports standard cutting, grid cutting, gouging and marking, with built-in CNC interface support and optional serial RS/CAN bus connectivity.
Available in single phase and three phase versions, the 45HD offers up to 45A output current and is suitable for cutting mild steel, stainless steel and aluminium.
- Output current up to 45A
- Single phase and three phase options available
- Handheld and mechanised cutting capability
- Standard cutting, grid cutting, gouging and marking modes
- Built-in CNC interface
- Compatible with FHT-EX®45TTH hand torch and FHT-EX®45TTM machine torch
- Compressed air, nitrogen and argon gas support
- IP23S protection rating
Plasma Pack Specs
| Output current | 10–25A @ 120 VAC / 10–45A @ 230 VAC / 10–45A three phase |
|---|---|
| Modes | Standard cutting / grid cutting / gouging / marking |
| Duty cycle | 40% @ 25A, 100% @ 16A / 50% @ 45A, 100% @ 32A / 80% @ 45A, 100% @ 40A |
| Rated output voltage | 145 VDC |
| Severance cutting capacity | 25mm mild steel |
| Piercing capacity | 10mm mild steel |
| Recommended cutting capacity | 10mm mild steel |
| Plasma gas | Compressed air / nitrogen / argon for marking |
| Air flow | 90 lpm @ 4.8 bar |
| CNC interface / Serial | Built-in / optional |
| Voltage divider ratio | 50:1 |
| Input voltage | 120 VAC ±15% / 230 VAC ±15% / 3 × 400 VAC ±15% |
| Frequency | 50/60 Hz |
| Dimensions | 470 × 229 × 177mm |
| Weight | 12.7kg |
| Certification | CE |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Hand torch | FHT-EX®45TTH |
| Machine torch | FHT-EX®45TTM |
Warranty
All new THERMACUT EX-TRAFIRE plasma cutting machines sold through THERMACUT UK Ltd include a 3 year warranty against failure due to defective materials or production.
Servicing
- Maintenance contracts are available at 3, 6 or 12 month intervals.
- We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
- We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
- We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
