Product Description

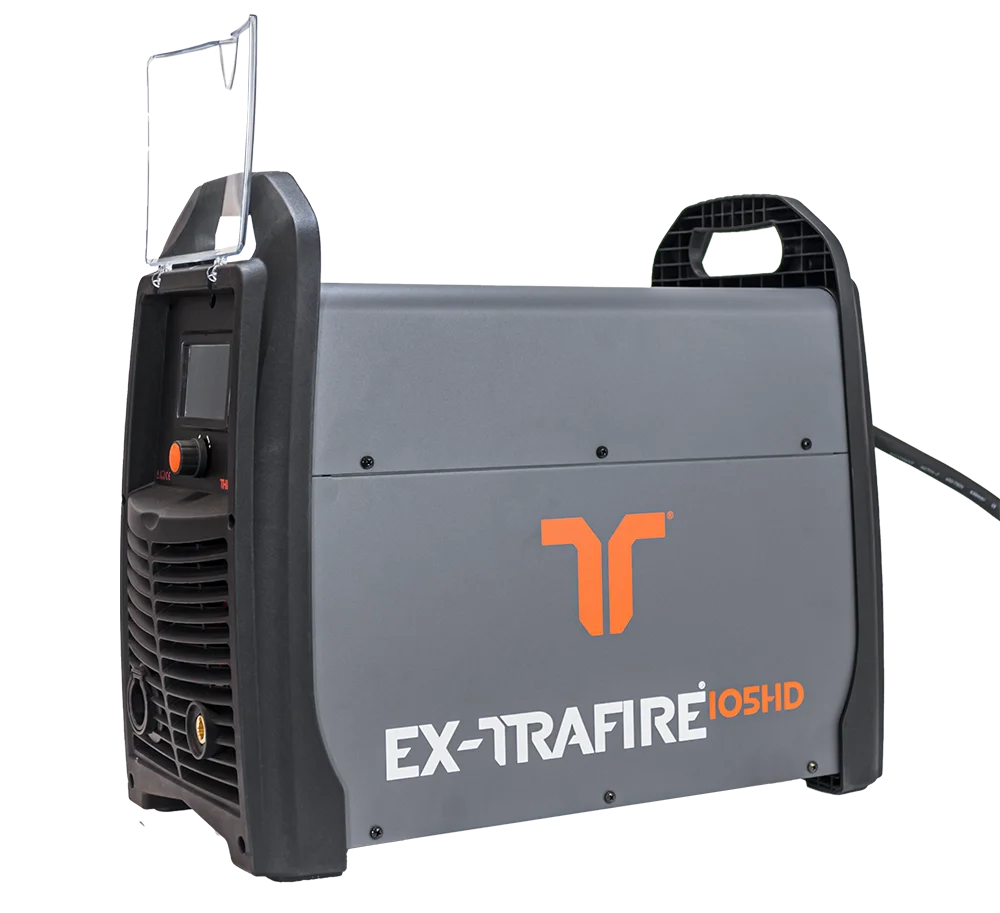

The EX-TRAFIRE® 105HD is a powerful industrial plasma cutting system designed for high-performance handheld and mechanised cutting applications. With up to 105A output current, the system delivers increased cutting capability while maintaining excellent cut quality, reliability and efficiency.
Suitable for demanding fabrication environments, the 105HD supports standard cutting, grid cutting, gouging and marking. Built-in CNC connectivity allows seamless integration with automated cutting systems.
- Output current up to 105A
- Heavy-duty handheld and mechanised plasma cutting
- Increased cutting capacity for thicker materials
- Standard cutting, grid cutting, gouging and marking modes
- Built-in CNC interface
- Optional serial RS/CAN bus connectivity
- Compatible with FHT-EX®65/105 torch systems
- Suitable for industrial fabrication applications
- Reliable performance in demanding environments
Plasma Pack Specs
| Output current | 20–105A |
|---|---|
| Modes | Standard cutting / grid cutting / gouging / marking |
| Duty cycle | 80% @ 105A / 100% @ 94A |
| Rated output voltage | 160 VDC |
| Severance cutting capacity | 60mm mild steel |
| Piercing capacity | 30mm mild steel |
| Recommended cutting capacity | 35mm mild steel |
| Plasma gas | Compressed air / nitrogen / argon for marking |
| Air flow | 190 lpm @ 5.5 bar |
| CNC interface | Built-in |
| Serial interface | Optional RS/CAN bus |
| Voltage divider ratio | 50:1 |
| Input voltage | 3 × 400 VAC ±15% |
| Frequency | 50/60 Hz |
| Dimensions | 680 × 315 × 510mm |
| Weight | 32kg |
| Certification | CE |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Hand torch | FHT-EX®65/105TTH |
| Machine torch | FHT-EX®65/105TTM |
Warranty
All new THERMACUT EX-TRAFIRE plasma cutting machines sold through THERMACUT UK Ltd include a 3 year warranty against failure due to defective materials or production.
Servicing
- Maintenance contracts are available at 3, 6 or 12 month intervals.
- We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
- We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
- We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
