Powermax 125
Horizontal Line

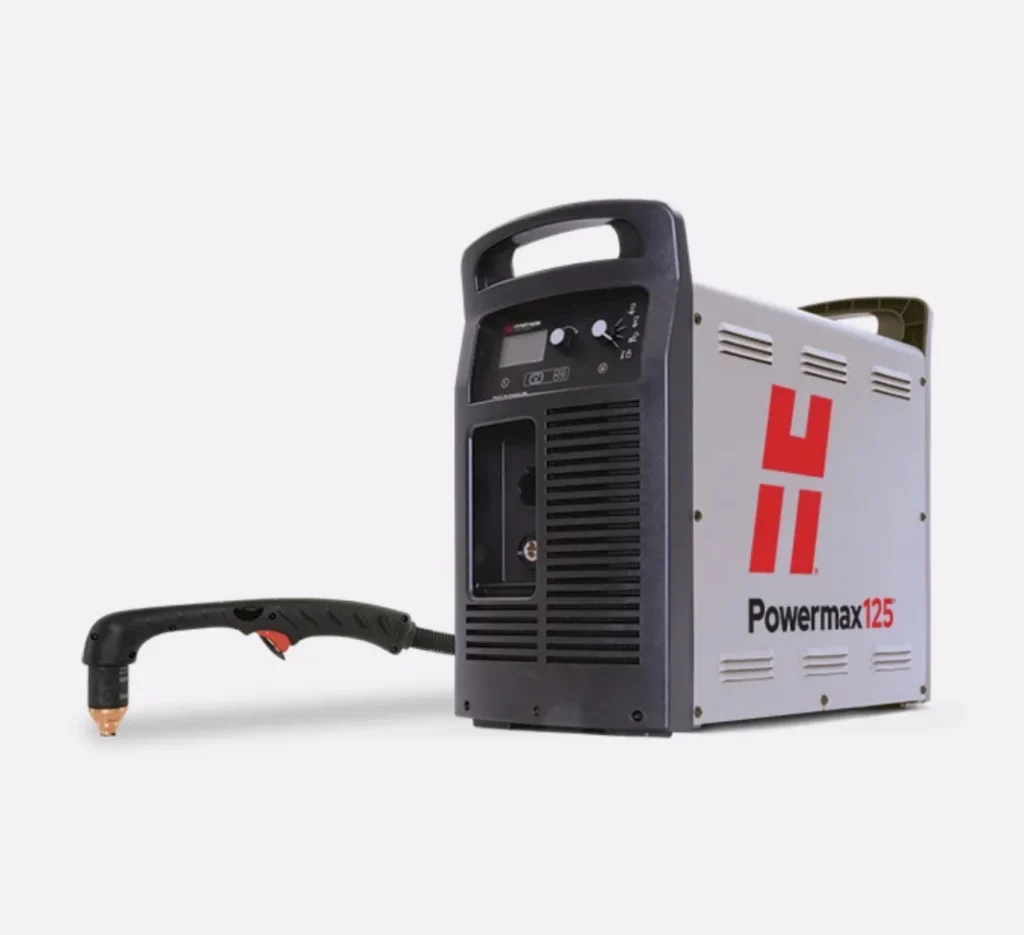

Powermax 125

POA

Brand:Weldplas
SKU:000000
Availability:Typically ships in 1 week

Product Description

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1″) mechanised pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.

Plasma Pack Specs

Powermax 125

Plasma Pack Dimensions (W x L x H):592 x 274 x 508 mm

Plasma Pack Weight: 49 kg

Phase: Three Phase

Power Supply: 400v 3PH 36A

Fuse Rating (Slow Blow): 40 A Max Input Power

Current Adjustment Range: 30A ÷ 125A

Duty Cycle (10 min. 40°C) According to IEC 60974-1: 125 A - 100%

Stepless Regulation: Electronic

Protection Class: IP21 S

Maximum Edge Start Cut: 40 mm

Consumables:

  • Nozzle
  • Electrode
  • Swirl ring
  • Nozzle holder
  • Shield cap



Maximum Thickness Precision Cut Speed @ 6 mm Pierce Capacity
Mild Steel 40 mm 4980 m/min 25 mm
Stainless Steel 40 mm 5910 mm/min 20 mm
Aluminium 40 mm 7660 m/min 25 mm

Warranty

Servicing

  • Maintenance contracts are available at 3, 6 or 12 month intervals.
  • We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
  • We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
  • We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
