Product Description

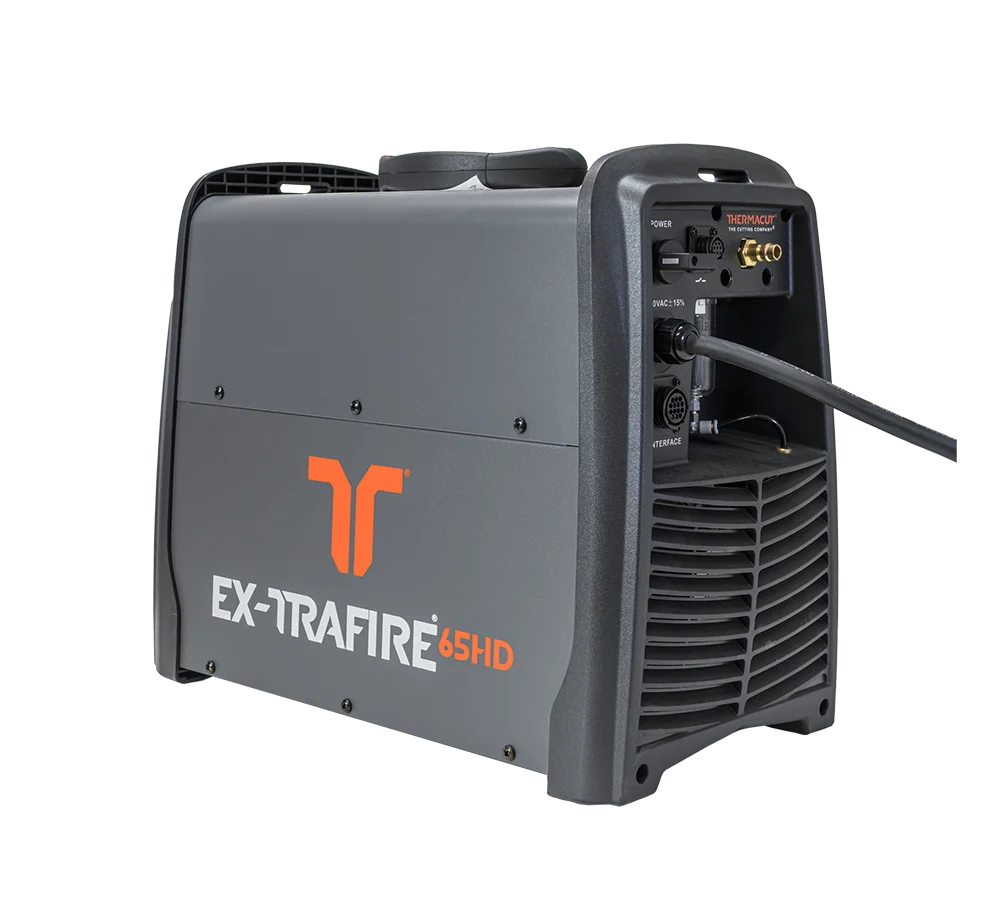

The EX-TRAFIRE® 65HD is a powerful plasma cutting system designed for professional handheld and mechanised cutting applications. Delivering up to 65A output current, it provides excellent cutting performance while maintaining reliability, efficiency and ease of use.
With support for standard cutting, grid cutting, gouging and marking, the 65HD offers flexibility across a wide range of workshop and industrial applications. Built-in CNC connectivity makes it suitable for automated cutting systems.
- Output current up to 65A
- High-performance handheld and mechanised plasma cutting
- Standard cutting, grid cutting, gouging and marking modes
- Built-in CNC interface
- Optional serial RS/CAN bus connectivity
- Compatible with FHT-EX®65/105TTH hand torch and machine torch systems
- Compressed air, nitrogen and argon gas support
- Designed for demanding industrial environments
Plasma Pack Specs
| Output current | 20–65A |
|---|---|
| Modes | Standard cutting / grid cutting / gouging / marking |
| Duty cycle | 50% @ 65A / 100% @ 46A |
| Rated output voltage | 160 VDC |
| Severance cutting capacity | 40mm mild steel |
| Piercing capacity | 20mm mild steel |
| Recommended cutting capacity | 20mm mild steel |
| Plasma gas | Compressed air / nitrogen / argon for marking |
| Air flow | 190 lpm @ 5.5 bar |
| CNC interface | Built-in |
| Serial interface | Optional RS/CAN bus |
| Voltage divider ratio | 50:1 |
| Input voltage | 3 × 400 VAC ±15% |
| Frequency | 50/60 Hz |
| Dimensions | 680 × 315 × 510mm |
| Weight | 32kg |
| Certification | CE |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Hand torch | FHT-EX®65/105TTH |
| Machine torch | FHT-EX®65/105TTM |
Warranty
All new THERMACUT EX-TRAFIRE plasma cutting machines sold through THERMACUT UK Ltd include a 3 year warranty against failure due to defective materials or production.
Servicing
- Maintenance contracts are available at 3, 6 or 12 month intervals.
- We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
- We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
- We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
