Powermax 85 Sync
Horizontal Line

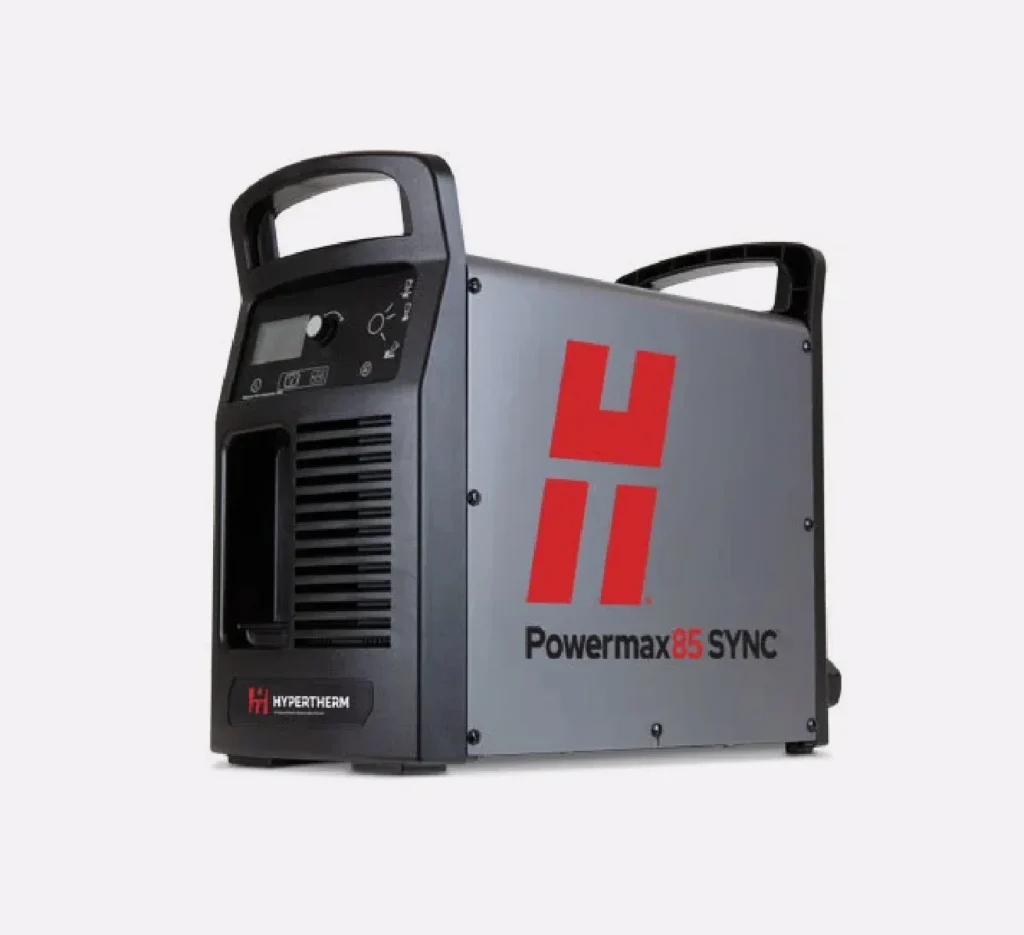

Powermax 85 Sync

POA

Brand:Hypertherm
SKU:000000
Availability:Typically ships in 1 week

Product Description

The Powermax 85 is a professional-grade 22 mm plasma cutter that provides automated process set-up. Combined with a revolutionary cartridge consumable platform, it offers ease of use and optimised performance.

Plasma Pack Specs

Powermax 85 Sync

Plasma Pack Dimensions (W x L x H):483 x 233 x 430 mm

Plasma Pack Weight: 23.5 kg

Phase: Three Phase

Power Supply: 400v 3PH 20.5A

Fuse Rating (Slow Blow): 25 A Max Input Power

Current Adjustment Range: 25A ÷ 85A

Duty Cycle (10 min. 40°C) According to IEC 60974-1: 85 A - 60%

Stepless Regulation: Electronic

Protection Class: IP21 S

Maximum Edge Start Cut: 30 mm

Consumables:

  • Sync Cartridge



Maximum Thickness Precision Cut Speed @ 6 mm Pierce Capacity
Mild Steel 30 mm 3560 m/min 20 mm
Stainless Steel 25 mm 3630 mm/min 16 mm
Aluminium 25 mm 3630 m/min 16 mm



Warranty

Servicing

  • Maintenance contracts are available at 3, 6 or 12 month intervals.
  • We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
  • We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
  • We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
