WeldPlas HS4000
High power Ethercat AC brushless motors and precision planetary gearboxes.
Aluminium frame with precision waterjet cut plates and high strength extrusions.
Fully automatic Z axis with plate find, arc voltage control and laser alignment.
Precision linear slides and ballscrew drives throughout.
Twin drives mounted on linear slides for precision.
Magnetic torch breakaway.
Curved slats minimise plate movement.
British design and manufacture.
Horizontal Line

WeldPlas HS4000

From £39,000

(+VAT)
Brand:Weldplas
SKU:SKU0000000
Availability:Typically Ships In 8 Weeks
Configure your machine

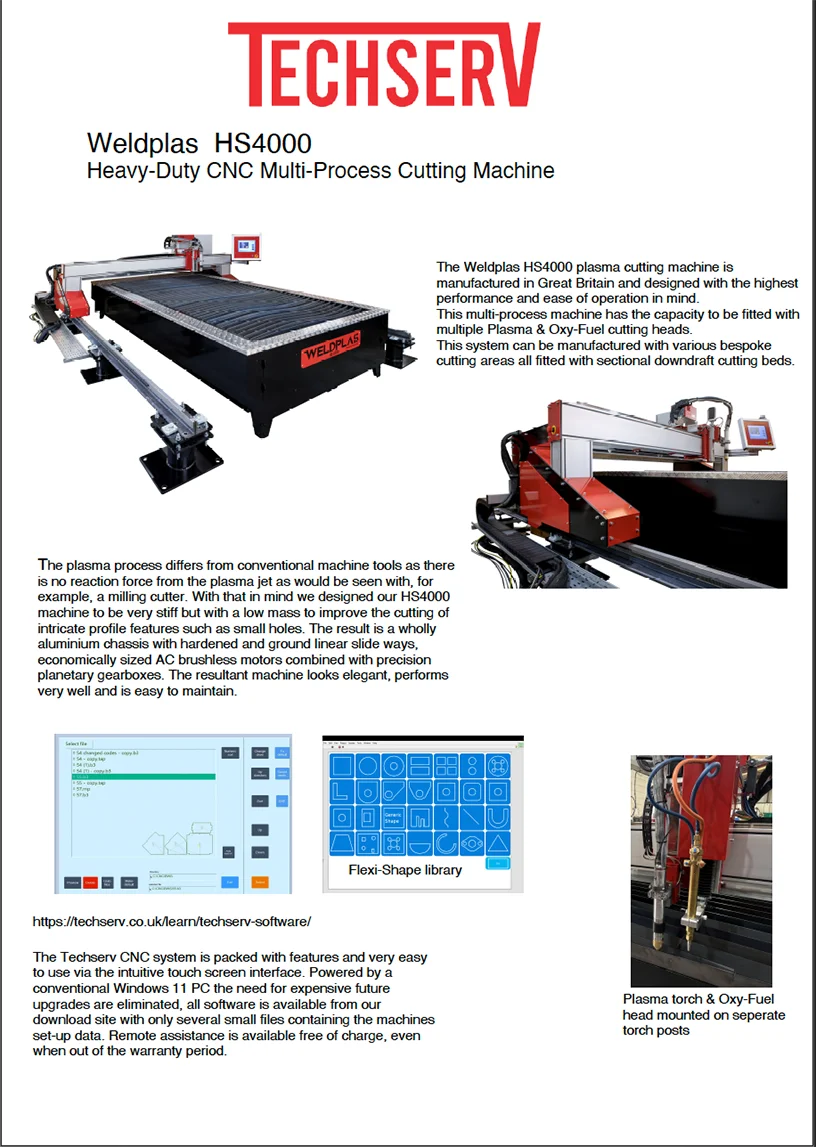

Product Description

The WeldPlas HS4000 plasma cutting machine is designed to offer the ultimate in CNC plasma profiling. Matched with the high performance HQC plasma packs from Cebora, it is the ideal system for precision profiling. It is a proven performer across a range of industries including large-scale fabrication, structural steel and shipbuilding.

This plasma cutting machine is manufactured using high-grade extruded aluminium and water jet-cut aluminium plate to create a high strength and low mass structure. Coupled with the high-performance EtherCat AC drive system, the WeldPlas HS4000 is capable of rapid acceleration and deceleration with minimal resonance or bounce. This enables the plasma cutting machine to create profiles with sharp corners and smooth round holes.

The WeldPlas HS4000 is available in a wide range of sizes and configurations, from 2m x 4m up to 6m x 30m. It can be combined with up to 3 plasmas and 8 gas heads.

CNC Machine Specs

Maximum Cutting Speed: 20,000mm/minute

Interface: Touch Screen

Screen Display Size: 300mm x 230mm

WiFi: Yes

Computer/Interface Ports: 4x USBs, ethernet

Frame Material: Aluminium frame with floor mounted steel rails

Number of Axis: 4

Control System: TechServ CNC system

The HS 4000 machine is available in a range of sizes from 2 m x 4 m to 6 m x 30 m

Cutting Bed Size: 2m x 4m
  • Machine size: 2.8m 4.8m
  • Maximum Cutting Size: ?
  • Machine Weight: 500kg
  • Maximum Load Weight: 2 tonnes
Cutting Bed Size: 6m x 30m
  • Machine size:  7m x 31m
  • Maximum Cutting Size: 6m x 30m
  • Machine Weight: 750kg
  • Maximum Load Weight: 20 tonnes

Plasma Pack Specs

Plasma Prof 180 HQC

Plasma Pack Dimensions (W x L x H): 750 x 1370 x 1310mm

Plasma Pack Weight: 380kg

Phase: Three Phase

Power Supply: 230v/400v/440v 50/60 Hz +/-10%

Fuse Rating (Slow Blow): 125A / 80A / 63A

  • I1eff – The “effective input current” is typically shown on the machine data plate, with the symbol I1eff. If a machine has I1eff rating of 10A or less, it can be fitted with a 10A plug. If a machine has I1eff rating of more than 10A & up to 15A, then it should be fitted with a 15A plug.

Max Input Power With CP 455G:

40 kVA +/-10%

Current Adjustment Range: 10A ÷ 180A

Duty Cycle (10 min. 40°C) According to IEC 60974-1:

180 A – 100%

Stepless Regulation: Electronic

Protection Class: IP21 S

Maximum Edge Start Cut:60 mm

Consumables:

  • Swirl Ring
  • Electrode
  • Nozzle
  • Retaining Cap
  • Shield Cap
  • Gas
Maximum Thickness Precision Cut Speed @ 20 mm Pierce Capacity
Mild Steel 60 mm 1.4 m/min 40 mm
Stainless Steel 40 mm 1.0 mm/min 30 mm
Aluminium 40 mm 1.3 m/min 30 mm
Plasma Prof 300 HQC

Plasma Pack Dimensions (W x L x H): 750 x 1370 x 1310mm

Plasma Pack Weight: 450kg

Phase: Three Phase

Power Supply: 230v/400v/440v 50/60 Hz +/-10%

Fuse Rating (Slow Blow): 200A \ 125A \ 100 A

  • I1eff – The “effective input current” is typically shown on the machine data plate, with the symbol I1eff. If a machine has I1eff rating of 10A or less, it can be fitted with a 10A plug. If a machine has I1eff rating of more than 10A & up to 15A, then it should be fitted with a 15A plug.

Max Input Power With CP 455G:

66 kVA +/-10%

Current Adjustment Range: 10A ÷ 300A

Duty Cycle (10 min. 40°C) According to IEC 60974-1:

300A – 100%

Stepless Regulation: Electronic

Protection Class: IP21 S

Maximum Edge Start Cut: 80 mm

Consumables:

  • Swirl Ring
  • Electrode
  • Nozzle
  • Retaining Cap
  • Shield Cap
  • Gas
Maximum Thickness Precision Cut Speed @20 mm Pierce Capacity
Mild Steel 80 mm 2.2 m/min 50 mm
Stainless Steel 60 mm 1.1 m/min 35 mm
Aluminium 50 mm 2.2 mm/min 30 mm
MaxPro 200

Plasma Pack Dimensions (W x L x H): 1020 x 690 x 1050 mm

Plasma Pack Weight: 335 kg

Phase: Three Phase

Power Supply: 400v 3PH 54A

Fuse Rating (Slow Blow): 65 A Max Input Power With CP 455G:

Current Adjustment Range: 50A ÷ 200A

Duty Cycle (10 min. 40°C) According to IEC 60974-1: 200 A – 100%

Stepless Regulation: Electronic

Protection Class: IP21 S

Maximum Edge Start Cut: 40 mm

Consumables:

  • Nozzle
  • Electrode
  • Swirl ring
  • Nozzle holder
  • Shield cap



Maximum Thickness Precision Cut Speed @ 10 mm Pierce Capacity
Mild Steel 50 mm 3735 m/min 32 mm
Stainless Steel 50 mm 4120 mm/min 25 mm
Aluminium 38 mm 3930 m/min 32 mm

Machine Setup and Safety

  • Setup
    • Our engineers will assess the power requirements for your machine. They will specify which services are required and their locations.
    • The WeldPlas HS4000 machine is shipped with the rails disassembled. Our engineers will position the rails and bolt them to the floor. The machine is then fitted to the rails and the cutting bed is installed. After connecting the services the machine will be tested.
    • A Weldfast engineer will take you through the safety features of the machine and train your operators, so they can safely operate the machine and get the best out of it. Once our engineer has completed the final calibration checks, you can then sign off the machine.
    • If required, an engineer will make a second visit to continue the operator training and demonstrate the software’s advanced features.



  • Software
    • The Techserv CNC software is designed specifically for profile cutting and is fitted to all our new machines as standard
    • File types accepted: Essi, Word address, NC ( Strucad) DXF and many others
    • Nesting: Array and true shape nesting built in
    • Wide range of standard shapes including rings, flanges and blanks
    • Customisable shapes with save and edit facility
    • Optional line following scanner for drawn shapes
    • Multi-axis 64 bit motion control
    • Position accuracy +/- 0.01 mm
    • Full circular interpolation axis control
    • Built-in magnetic breakaway for collision control



  • Safety
    • Machine mounted emergency stop buttons for operator safety
    • Waterbed fume control

Warranty

Servicing

  • Maintenance contracts are available at 3, 6 or 12 month intervals.
  • We have a team of dedicated service engineers for repairs and maintenance. We can also fix some issues remotely.
  • We hold a comprehensive range of spare parts in the UK and most are dispatched the same day.
  • We regularly update our CNC system. Software upgrades are available online or can be installed by our trained engineers.
